Tilt & Retract Pergolas
At UrbanXscapes, we specialise in transforming commercial outdoor spaces into year-round destinations. Our premium, European-engineered systems are designed to help you expand your usable square footage, increase seating capacity, and create a sophisticated, comfortable atmosphere for your customers.
Our Commitment to Quality
Quality is the foundation of everything we build. Our systems are meticulously crafted to meet rigorous European standards for material and manufacturing, ensuring they can withstand heavy commercial use and all seasonal conditions. From the initial design to professional installation, we guarantee flawless execution and provide reliable after-sales service, so you can focus on what you do best.

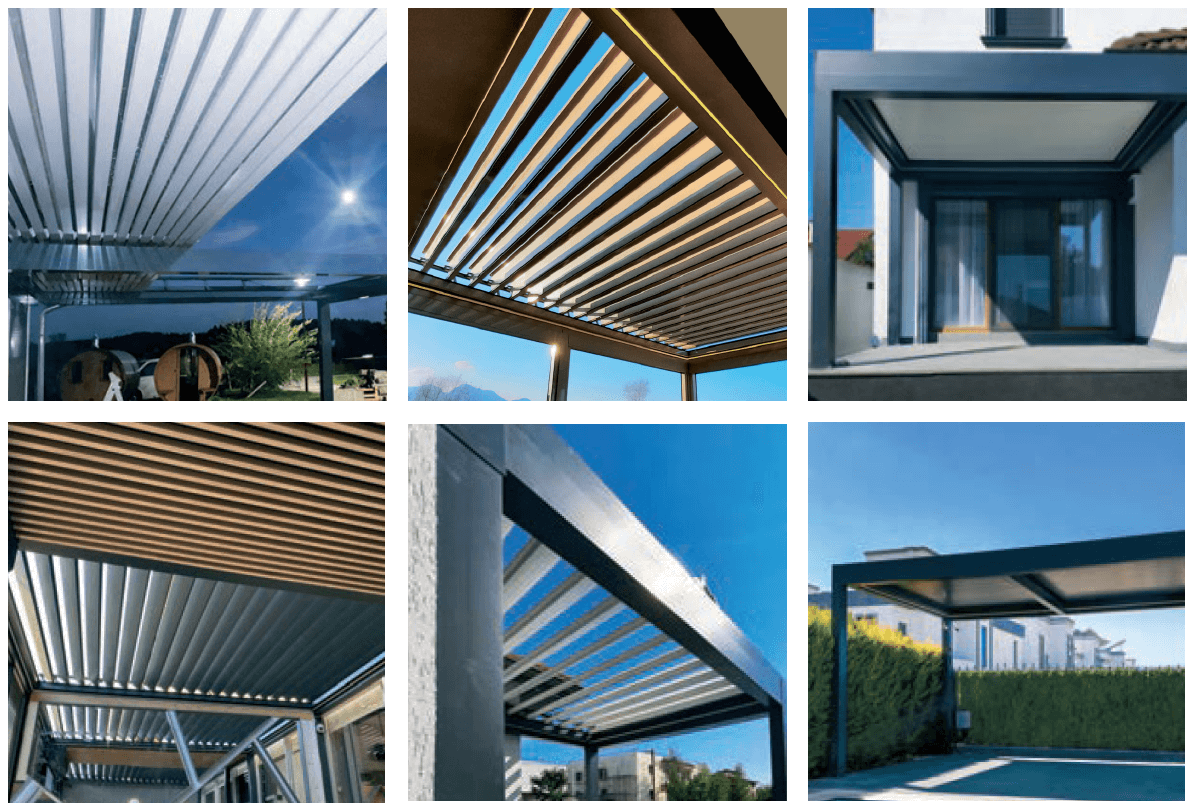

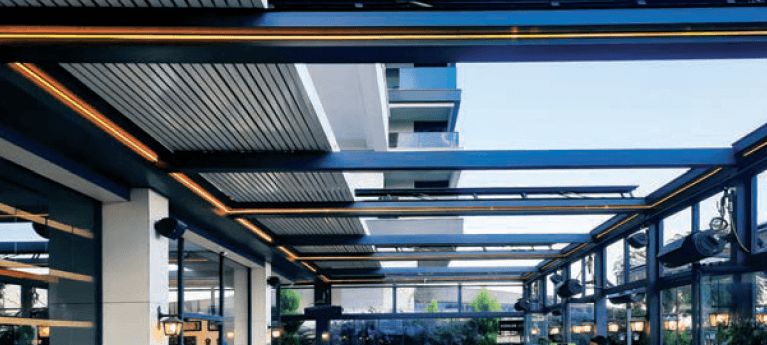

Get a QuoteBioclimatic Pergola System
Our Bioclimatic Pergolas offer the ultimate in flexibility and control. These automatic, retractable ceiling systems feature adjustable aluminium louvers that can be tilted to provide optimal shade and ventilation or sealed shut to create a 100% waterproof roof. This allows you to adapt to changing weather in moments, keeping your guests comfortable and your business running smoothly, rain or shine.
Key Benefits:
- Total Weather Control: Protects against sun, rain, and wind.
- Energy Efficiency: Excellent thermal and sound insulation keeps your space comfortable.
- Silent Operation: The system runs quietly, maintaining a tranquil atmosphere.
- Durable Design: Built with robust aluminium profiles and corrosion-resistant components.

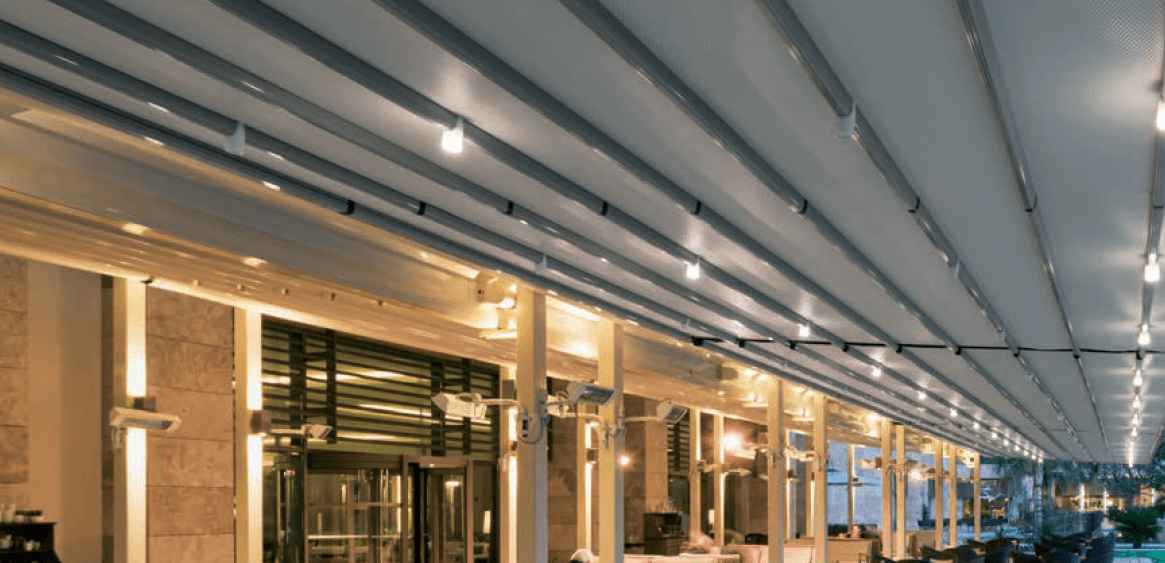

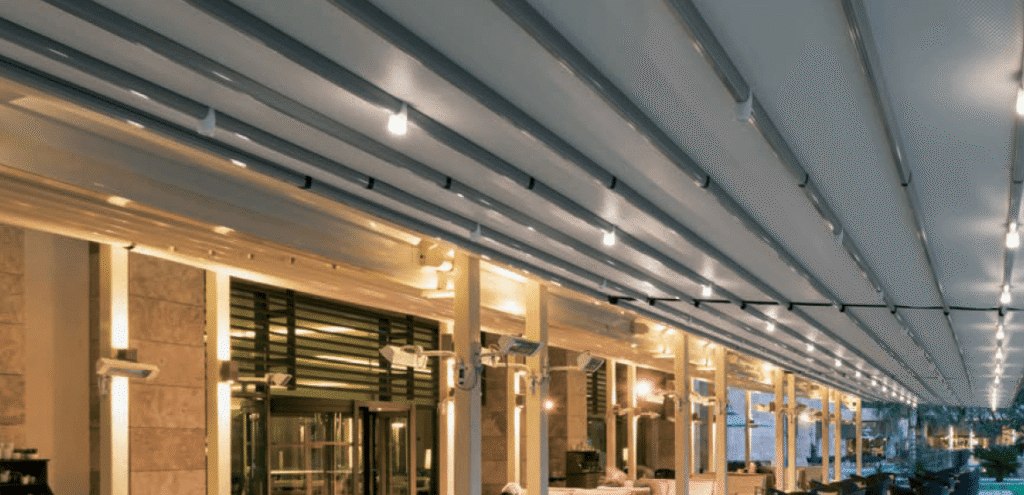

Motorised Pergola System
Create a striking and functional outdoor area with our Motorised Pergola Systems. These elegant, remote-controlled pergolas feature a durable aluminium structure and a retractable, 100% waterproof blackout membrane. Integrated LED lighting allows you to set the mood and extend your service hours well into the evening.
Key Features:
- All-Season Performance: Engineered to handle high winds and heavy snow loads.
- Premium Material: The high-quality PVC membrane is fire-retardant and provides excellent thermal insulation.
- Customizable: Available in any RAL color to match your brand’s aesthetic.
- Extended Hours: Integrated lighting lets you create a welcoming ambiance after sunset.
Motorised Guillotine Glass System
Enclose your space with style and functionality using our Motorised Guillotine Glass Systems. These vertical-sliding glass panels are operated by a remote control, allowing you to seamlessly transition from an open-air patio to a fully enclosed, protected space. When fully open, the bottom panel remains stationary, serving as a secure glass railing.
Key Advantages:
- Panoramic Views: Provide an unobstructed view while protecting against the elements.
- Enhanced Security: The stationary bottom panel acts as a permanent, secure barrier.
- Sound & Wind Insulation: Creates a quiet, comfortable environment for your patrons.
- Versatile Use: Ideal for restaurants, cafes, and hotels looking to maximize their outdoor space year-round.
Ready to see how UrbanXscapes can help you create a more profitable and inviting outdoor space? Contact us today for a consultation.
Our Commitment to Quality & Innovation
Quality and innovation are at the heart of everything we do. Every component is a bespoke design that meets rigorous European standards for material and manufacturing, ensuring durability, comfort, and style. From the initial design to the final assembly, we guarantee flawless execution. We are dedicated to providing superior products, professional installation, and reliable after-sales service, ensuring every project is delivered on time and to the highest standards.
Bioclimatic Pergola System
Our Bioclimatic Pergolas are versatile, automatic retractable ceiling systems designed to work with any space. Their silent operation, excellent thermal and sound insulation, and 100% waterproof design make them perfect for terraces, cafes, restaurants, winter gardens, and even residential roofs.
These systems use 6063 – T6 F25 aluminium profiles with an electrostatic coating. The movable roof is made of aluminium panels that are filled with polyurethane foam for insulation. The panels can tilt 105 degrees to effectively block sunlight and can also be fully retracted. A remote control operates the system, which can be installed on flat ground or a slope of up to 5%.
Technical Specifications
- Dimensions: Maximum width of 8.3 meters, maximum projection of 10 meters.
- Load resistance: Can withstand a distributed load of 50 kg/m² + 25 kg/m² and a wind load of 50 kg/m².
- Water management: Water is channeled out through the carrier feet.
- Warranty: Includes a two-year warranty on the engine and mechanical components.
Motorised Pergola System
Motorised Pergola Systems are an elegant solution for any space, featuring an aluminum structure that can be opened and closed effortlessly with a remote control. Designed for use in all four seasons, these pergolas provide shade in the summer and protection from rain and snow in the winter. They also include integrated LED lighting, allowing you to enjoy your space long after the sun goes down.
Our systems are produced to ISO 9001 quality standards. The retractable roof is a PVC-based, 3D blackout membrane from the Belgian brand SIOEN. This 850 g/m² membrane is waterproof, non-combustible, and non-flammable, providing excellent thermal insulation.
Manufacturing & Design
- Customization: Aluminium parts can be finished in any RAL colour or with wood-like transformation processing.
- Durability: The systems are engineered to handle a 25 cm snow load and wind speeds up to 70 km/h.
- Warranty: The fabric comes with a 5-year warranty, and the motors and automation components are patented with a 5-year warranty.
Motorised Guillotine Glass System
Our Motorised Guillotine Glass Systems are a modern and versatile solution for enclosing a space. Operated by a remote, the system features three glass panels. Two of these panels are mobile, moving up and down to open and close, while the third panel remains stationary at the bottom, serving as a secure railing when the system is fully open.
You can customize the glass with either 8 mm single tempered glass or double-glazed tempered glass in a variety of colours. These systems are an ideal choice for cafes, restaurants, hotels, winter gardens, and event halls.
Features & Benefits
- Smooth Operation: The vertical-sliding glass panels operate smoothly and quietly.
- Durable Construction: Each glass panel is housed in its own aluminium frame, ensuring secure construction.
- Customization: The aluminum profiles can be custom-painted in any RAL color.
- Versatility: These systems offer panoramic views and are perfect for winter gardens.
- Warranty: The galvanized pipe motor comes with a 5-year warranty.
Ready to transform your outdoor area into a valuable asset for your business? UrbanXscapes offers the expertise and premium solutions to help you attract more customers, extend your season, and maximise your revenue. Contact us today to schedule a consultation and discover how we can create a sophisticated, all-weather space that sets your establishment apart.
